Planetary Gearbox with Nema 11 Stepper Motor

FOB Reference Price:Get Latest Price
US $19-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Motech Motor
Model Number:
MT-11HSG
Phase:
2
Type:
Hybrid
Certification:
CE, ISO, ROHS
Step Angle(degrees):
1.8 (200steps/rev)
Holding Torque:
8.3 to 16.7 oz.in (0.6 to 1.2 kg.cm)
Current / Phase:
0.7A
Frame Size:
28*28mm
Motor length:
32mm/44.5mm/51mm
Body Colour:
Black
Shaft Diameter:
6mm
Maximum Case Tem.:
80°C
Stock:
Rich
OEM Service:
Accept
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The package we used is strongest recycle carton and durable EPE foam. We make sure the goods are safely delivered to your door.
Port
Guangzhou, Shenzhen
Lead Time :
2-7 days
Product Description
Item
Specifications
Housing Material
Metal
Bearing At Output
Ball Bearing
Max Radial Load
35N (10mm from flange)
Max. axial force
25N
Shaft Radial Play
0.04Max.
Shaft Axial Play
0.3Max.
Backlash Error
1.0°
Dimension
Model #
Rated Current
Holding Torque
Resistance
Inductance
Inertia
Max. Gear Ratio
“L1” Max
(Amps)
(oz.in)
(kg.cm)
(Ohms)
(mH)
(g.cm²)

32.0mm
(1.26")
MT-1101HS070A
0.70
8.3
0.60
5.6
3.4
9.0
≤1:189
44.5mm
(1.75")
MT-1102HS070A
0.70
13.2
0.95
6.8
4.9
12.0
51.0mm
(2.00")
MT-1103HS070A
0.70
16.7
1.20
9.2
7.2
18.0
Planetary Gearbox Specifications
Reduction Ratio
3.7
5.18
13.7
19.2
26.8
50.9
71.2
99.5
189
Number of Stage
1-stage
2-stage
3-stage
4-stage
Rated Tolearance Torque
12 kg.com
20 kg.com
32 kg.com
40 kg.com
Max Breaking Torque
36 kg.com
60 kg.com
96 kg.com
120 kg.com
Efficiency
90%
81%
73%
66%
Gearbox Length (L2 Max)
31.0mm
40.1mm
49.0mm
57.9.mm
Weight (g)
60
85
95
110

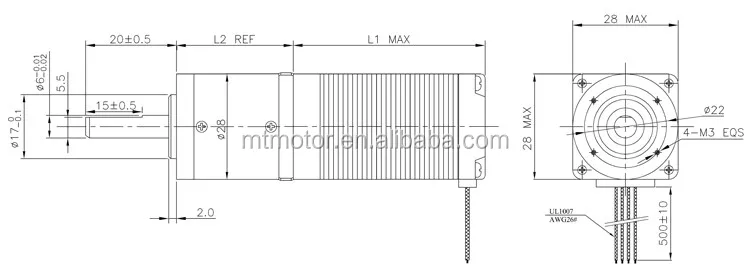

Demensions
