Nema 11 Linear Stepper Motor

FOB Reference Price:Get Latest Price
US $10-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Motech Motor
Model Number:
MT-11E/N
Phase:
2
Type:
Hybrid
Certification:
CE, ISO, ROHS
Step Angle(degrees):
1.8 degree
Holding Torque:
13.2 to 16.7oz.in (0.95 to 1.2 kg.cm)
Current / Phase:
0.7A
Frame Size:
28*28mm
Leads:
4 (Biopolar)
Shape:
Square
Body Colour:
Black
Lead Screw Diameter:
3.6mm or 5mm or 6.35mm
Lead Screw Type:
ACME
Maximum Case Tem.:
80°C
OEM Service:
Accept
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The package we used is strongest recycle carton and durable EPE foam. We make sure the goods are safely delivered to your door.
Port
Guangzhou, Shenzhen
Lead Time :
around 2 weeks
Product Description

Motor-Specifications


Dimension
"E" External Nut Model
"N" Non Captive Model
Rated Current
Holding Torque
Holding Torque
Resistance
“L2” Max

(Amps)
(oz.in)
(kg.cm)
(Ohms)
31.5mm
(1.24")
MT-1102E070( )-L1
MT-1102N070( )-L1
0.7
13.2
0.95
6.8
44.5mm
(1.75")
MT-1103E070( )-L1
MT-1103N070( )-L1
0.7
16.7
1.20
9.2
* Replace ( ) in model number with desired leadscrew.

Available Lead-screws


Leadscrew Code
Screw Dia.
Screw Dia.
Lead
Pitch
Travel per 1.8° Step
( )
(mm)
(inch)
(mm)
(mm)
(mm)
A1
3.6
9/64''
0.61
0.61
0.0031
A2
3.6
9/64''
1.22
1.22
0.0061
A3
3.6
9/64''
2.44
1.22
0.0122
D1
5.0
3/16''
2.00
1.00
0.01
F1
6.35
1/4''
1.588
1.5875
0.0079
F2
6.35
1/4''
3.175
1.5875
0.0158
F3
6.35
1/4''
6.350
1.5875
0.0318
* These values have been rounded off.
Demensions

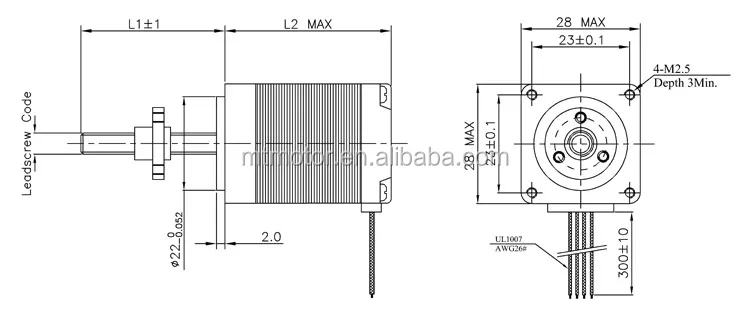

External nut

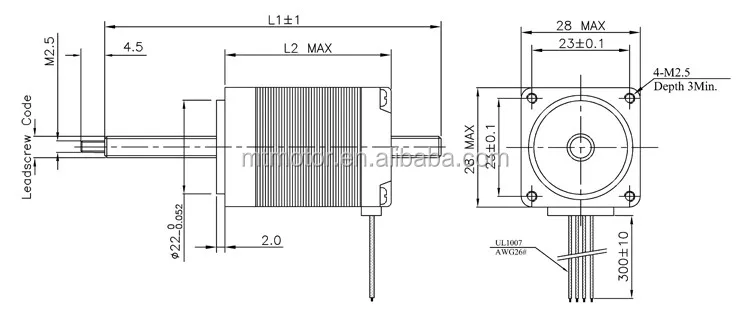

Non-Captive
