Nema 24 High Torque CNC Machine Stepper Motor

FOB Reference Price:Get Latest Price
US $19.5-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Motech Motor
Model Number:
MT-24HS
Phase:
2
Type:
Hybrid
Certification:
CE, ISO, ROHS
Step Angle(degrees):
1.8 degree
Holding Torque:
1.1N.m-4.1N.m
Current / Phase:
2.8A-4.5A
Frame Size:
60*60mm
Motor Type:
Bipolar (4 wires)
Shape:
Square
Body Colour:
Black
Shaft Diameter:
6.35mm or 8.0mm
Maximum Case Tem.:
80°C
D-cut Legnth:
15mm
Front Shaft Length:
20mm
Recommended Voltage:
24-48 V DC
OEM Service:
Accept
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The package we used is strongest recycle carton and durable EPE foam. We make sure the goods are safely delivered to your door.
Port
Guangzhou, Shenzhen
Lead Time :
around 5-14days
Product Description
Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130°C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
75N (20mm from the flange)
Max. axial force
15N
Dimension
Model #
Rated Current
Holding Torque
Resistance
Inductance
Inertia
Detent Torque
“L” Max
(Amps)
(oz.in)
(kg.cm)
(Ohms)
(mH)
(g.cm²)
(g.cm)
45.0mm
(1.77")
MT-2401HS280AW
2.8
153
11.0
0.75
2.0
275
500
56.0mm
(2.20")
MT-2402HS280AW
2.8
229
16.5
0.90
3.6
400
700
65.0mm
(2.56")
MT-2403HS280AW
2.8
292
21.0
1.20
4.6
570
900
86.0mm
(3.39)
MT-2404HS300AW
3.0
431
31.0
1.10
3.3
840
1000
100.0mm
(3.94)
MT-2405HS400AW
4.0
570
41.0
0.70
3.0
980
1300
108.0mm
(4.33)
MT-2406HS450AW
4.5
500
36.0
0.80
3.0
980
1300

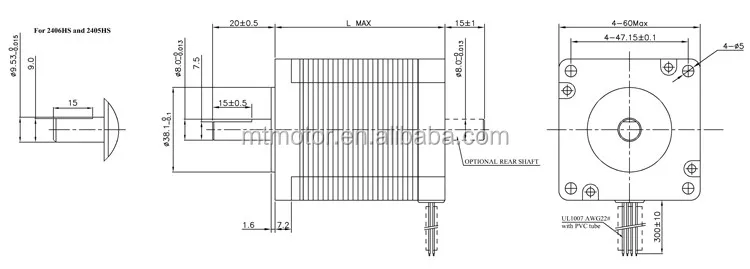

Demensions
